WiFi Smart Thermostat Wall-Hung Gas Boiler Water Electric Temperature Controller Device

WiFi Smart Thermostat Wall-Hung Gas Boiler Water Electric Temperature Controller Device

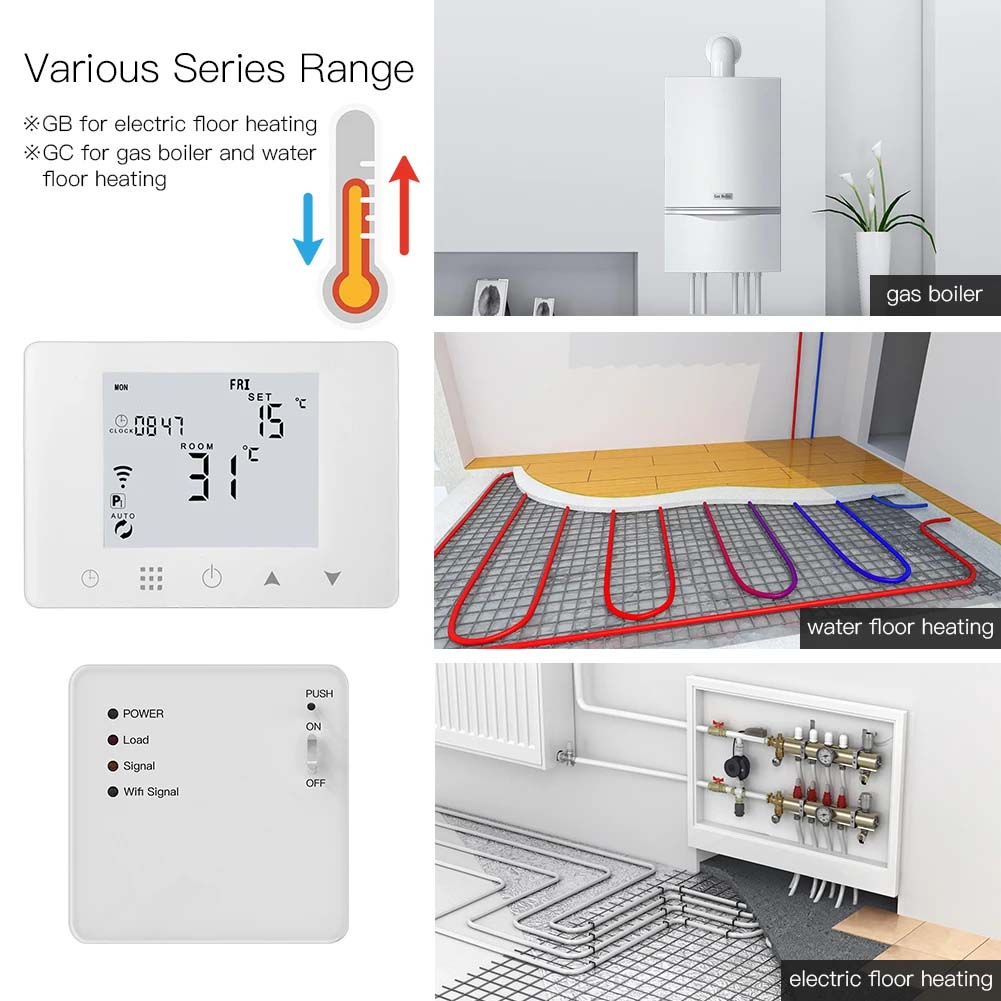

The HY09RF wireless thermostat is used together with the HY09RF wireless receiver. It adopts advanced international wireless technology to transmit and receive wirelessly.

Mainly used in electric floor heating system, water heating control system and wall-hung boiler system. Has good scalability.

  • Model :

    HY09RF
  • Working voltage :

    AC100~230V, 50/60HZ
  • Rated power :

    <0.5W
  • Color :

    White
  • Order(MOQ) :

    1
  • Product Details

Specifications:

Working voltage: AC100~230V, 50/60HZ

Self-consumption power: <0.5W

Load current: 1A/5A(BW)

Temperature sensor: NTC

Temperature control accuracy: ±5℃

Panel Dimensions: 130*90*20mm (H*W*D)

Setting temperature range: 5℃ - 35℃ (default)



Functions:

1.Programmable Function

realizing 7 days a week and 4 time periods a day. The temperature of the room can be set at different periods of time according to the user's work and rest time and living rules.



2.compares the difference between the indoor temperature and the set temperature, then transmits a signal to the wireless receiver and executes the command, and feeds back the actuator result to the wireless thermostat.



3.large-screen LCD display



4.With room temperature correction and compensation function (directly realized through the panel keys) to display the room temperature



5.Adopt high-reliability single-chip microcomputer, strong anti-interference, with clock, blue backlight



Photos:
