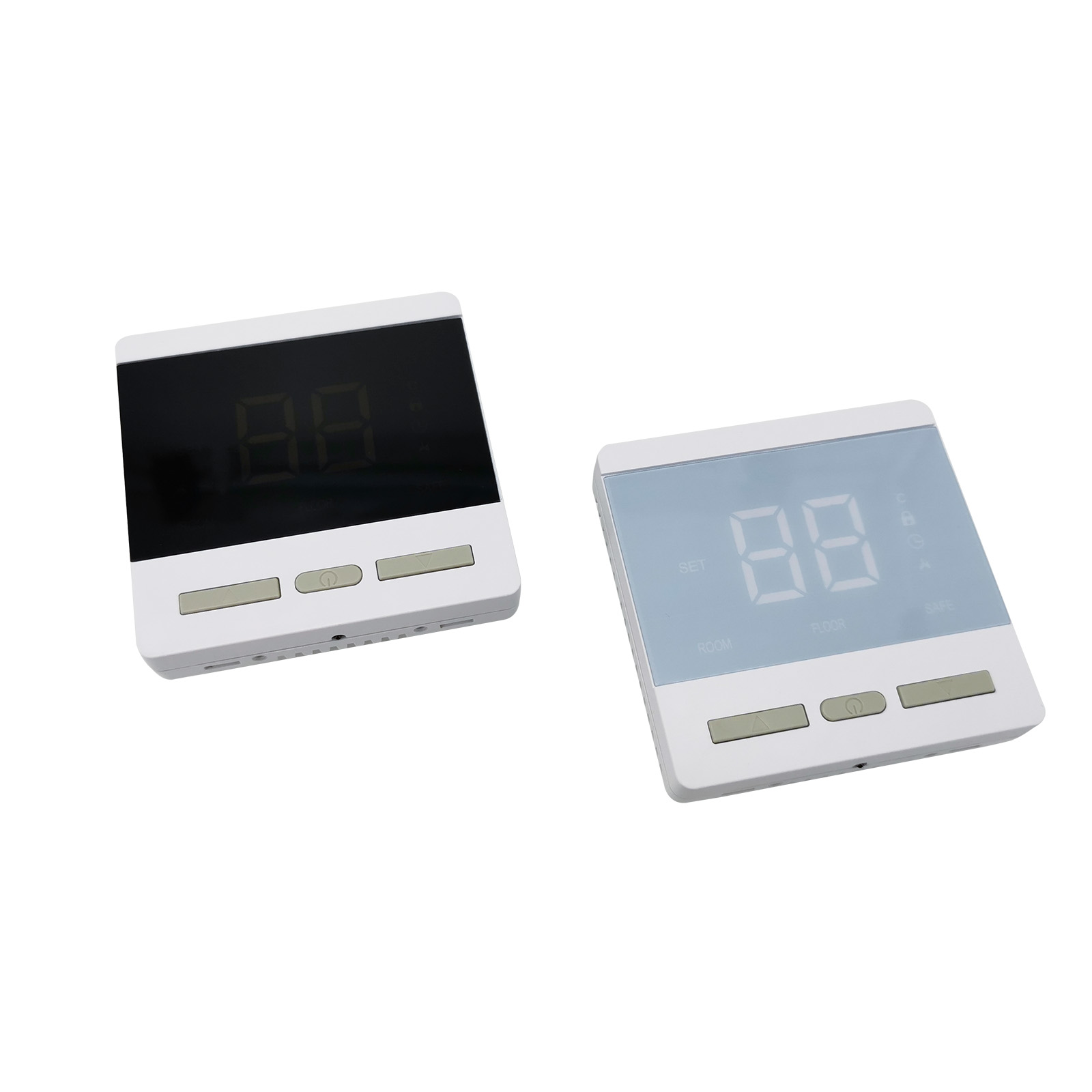

Intelligent Underfloor Heating Control Panel Electric Heating Film Thermostat

Technical Data：

1. Temperature measurement range: 5~85℃

2. Temperature measurement accuracy: ±1℃

3. Upper limit of temperature setting: 85℃

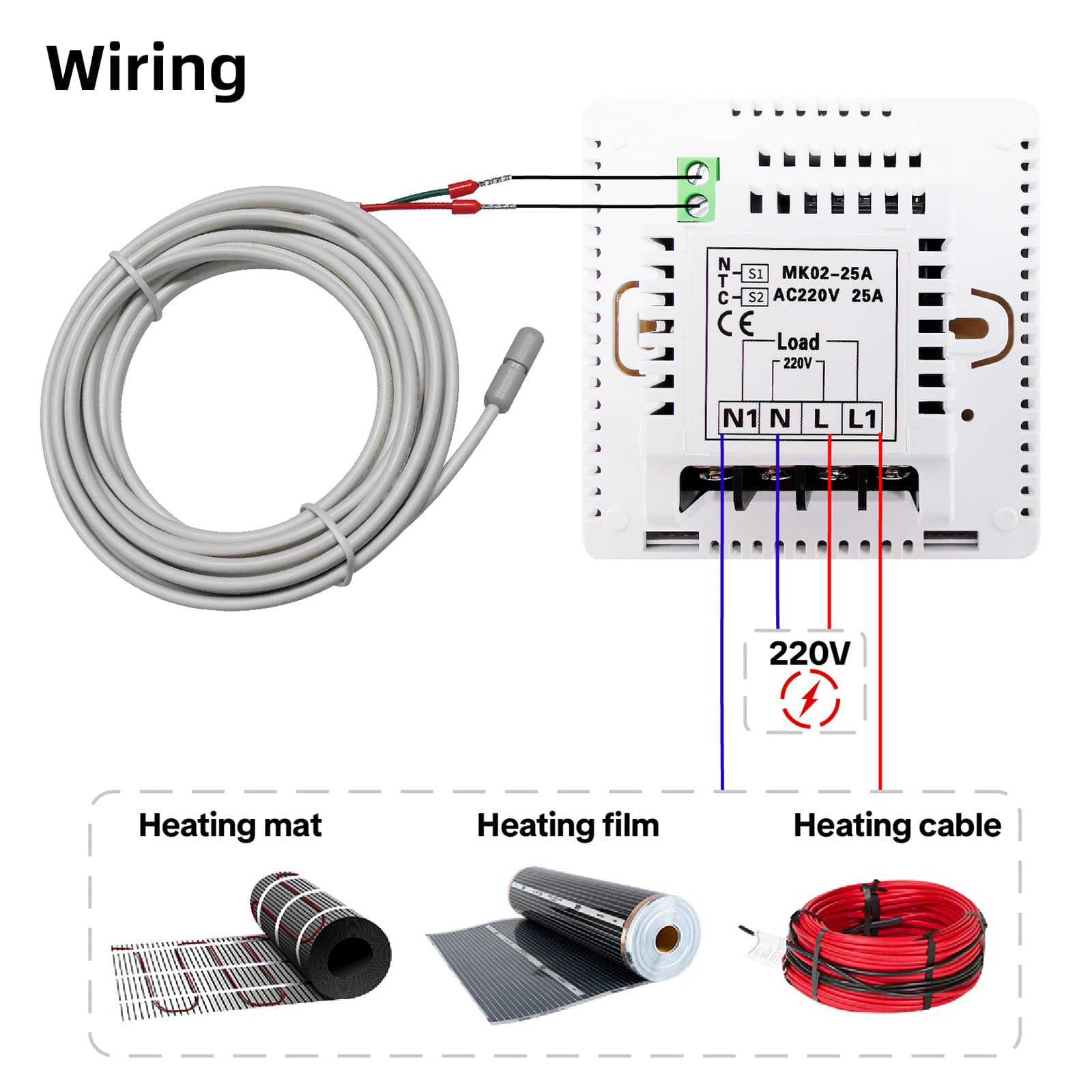

4. Load current: MAX 25A (4500W)

5. Temperature correction value: ± 9 ℃

(the range that can be adjusted up and down when calibrating the temperature)

6. Power supply voltage: 220V±20% 50HZ

7. Overheat protection temperature: factory setting is 50℃(adjustable)

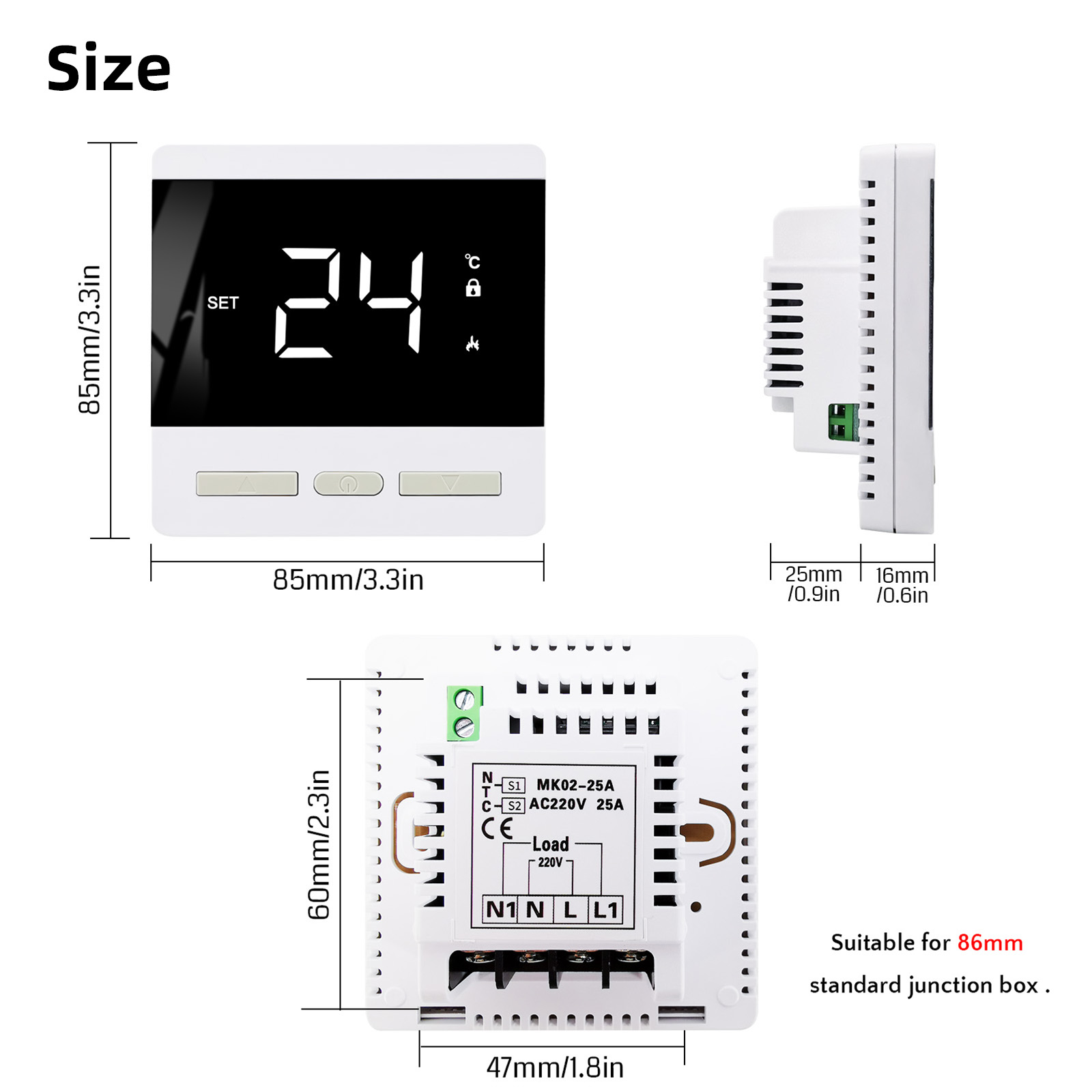

8. Size: 85*85*41 (back size: 61*47*25)

Function：

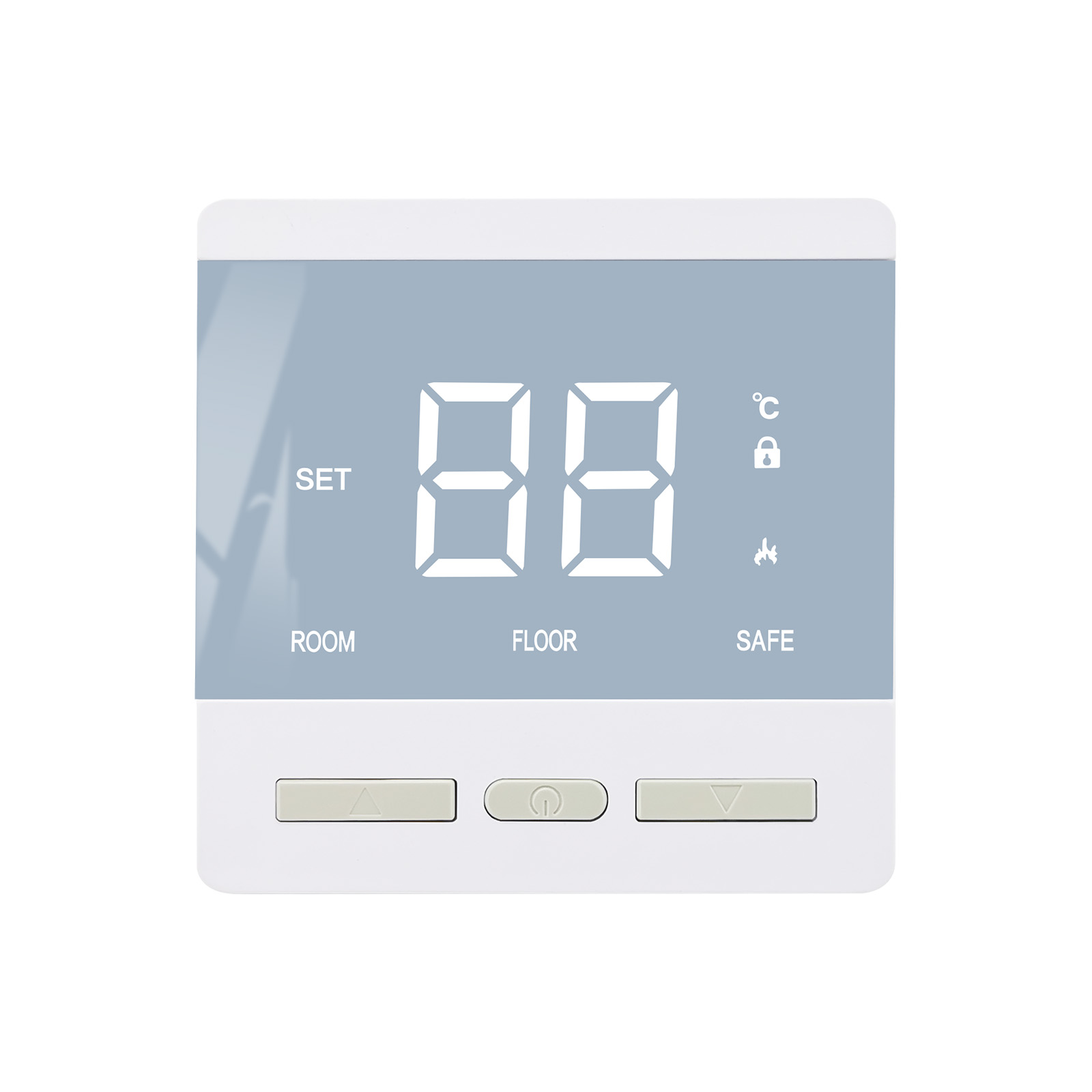

1.Temperature compensation：

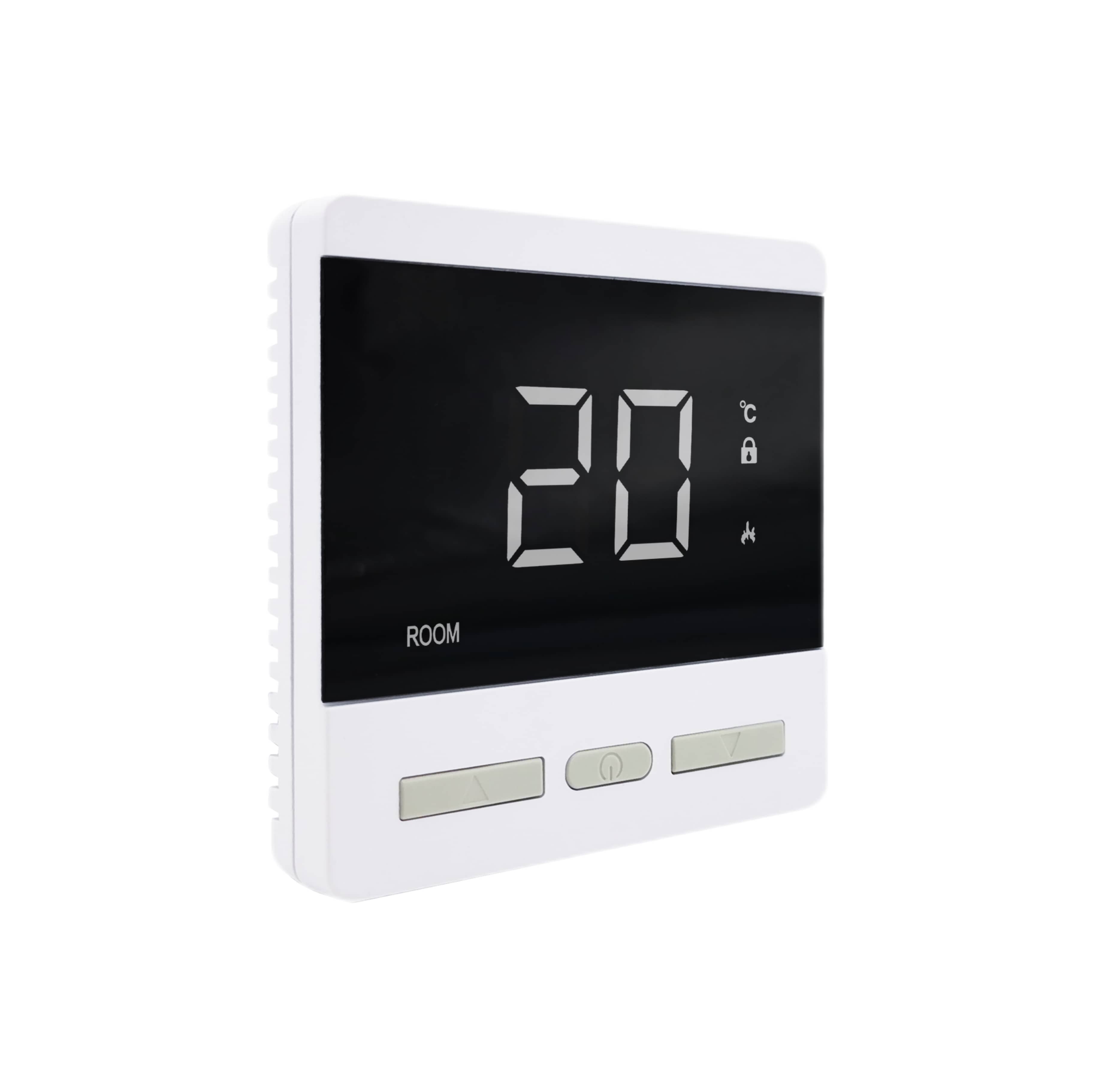

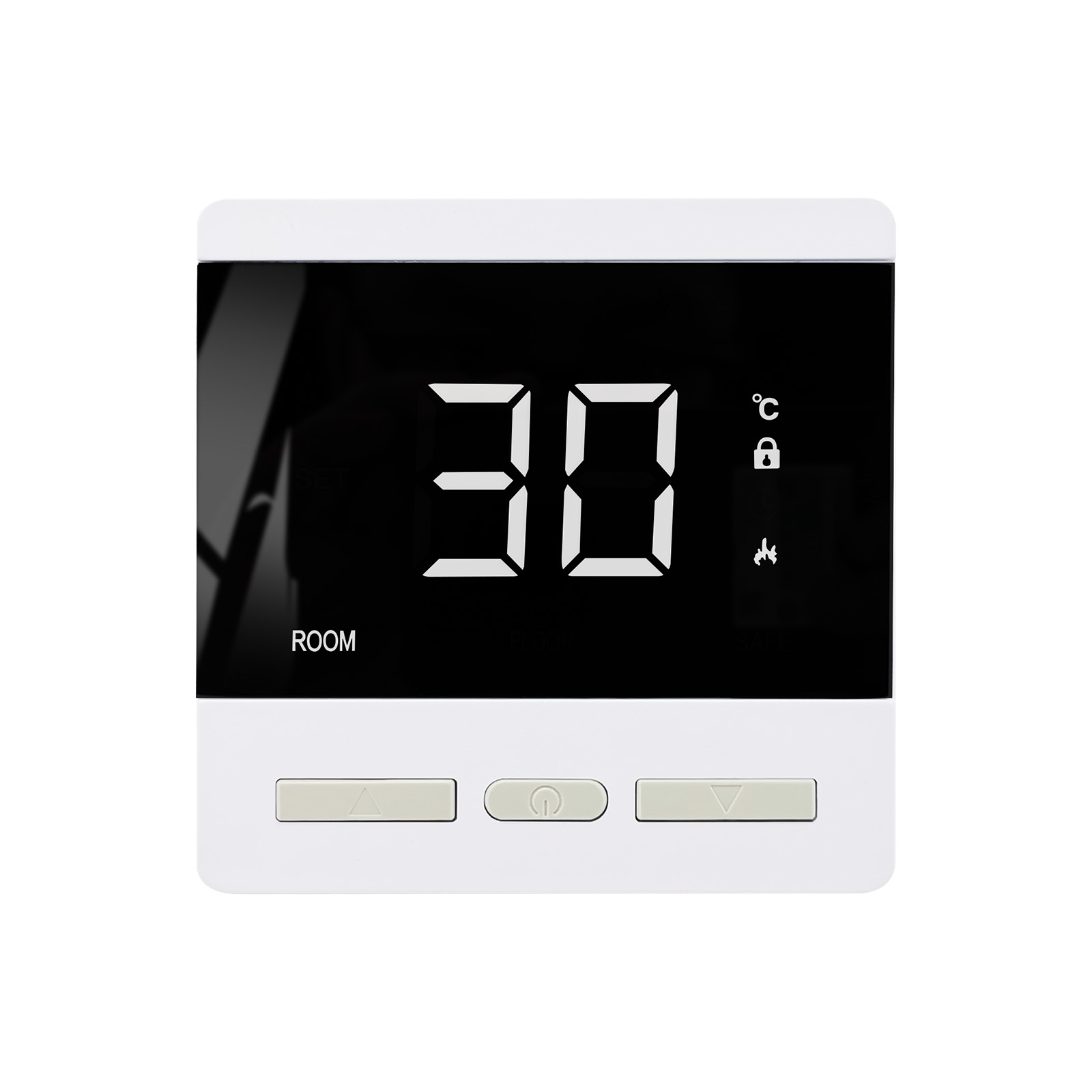

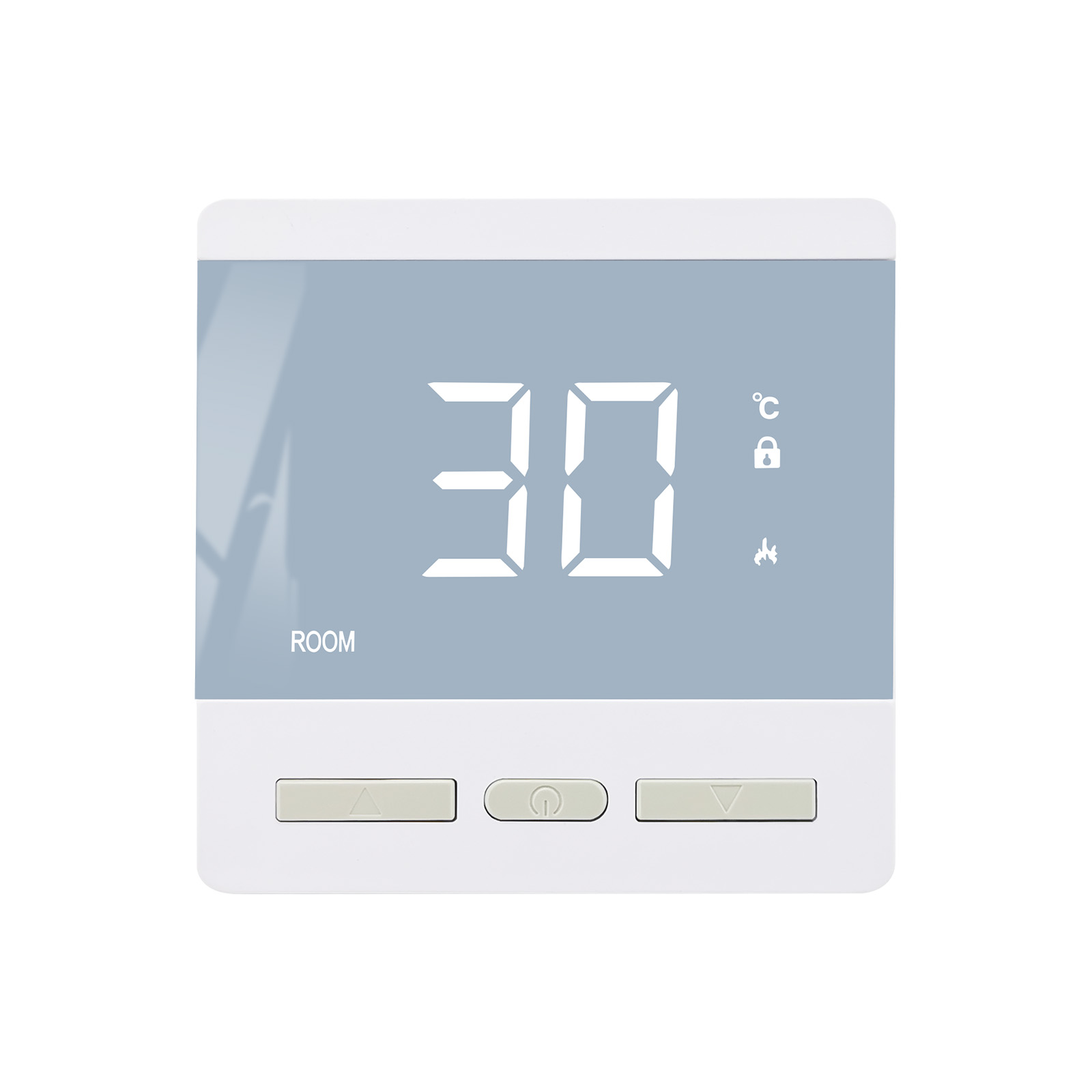

The screen will display current room temperature.

Adjustable range: room temperature ±9 ° C.

2.Temperature compensation：

The screen will display temperature compensation setting.

Adjustable range from -9 ° C to +9 ° C.

3.The upper limit of setting temperature：

Adjustable range from 5° C to 85 ° C.

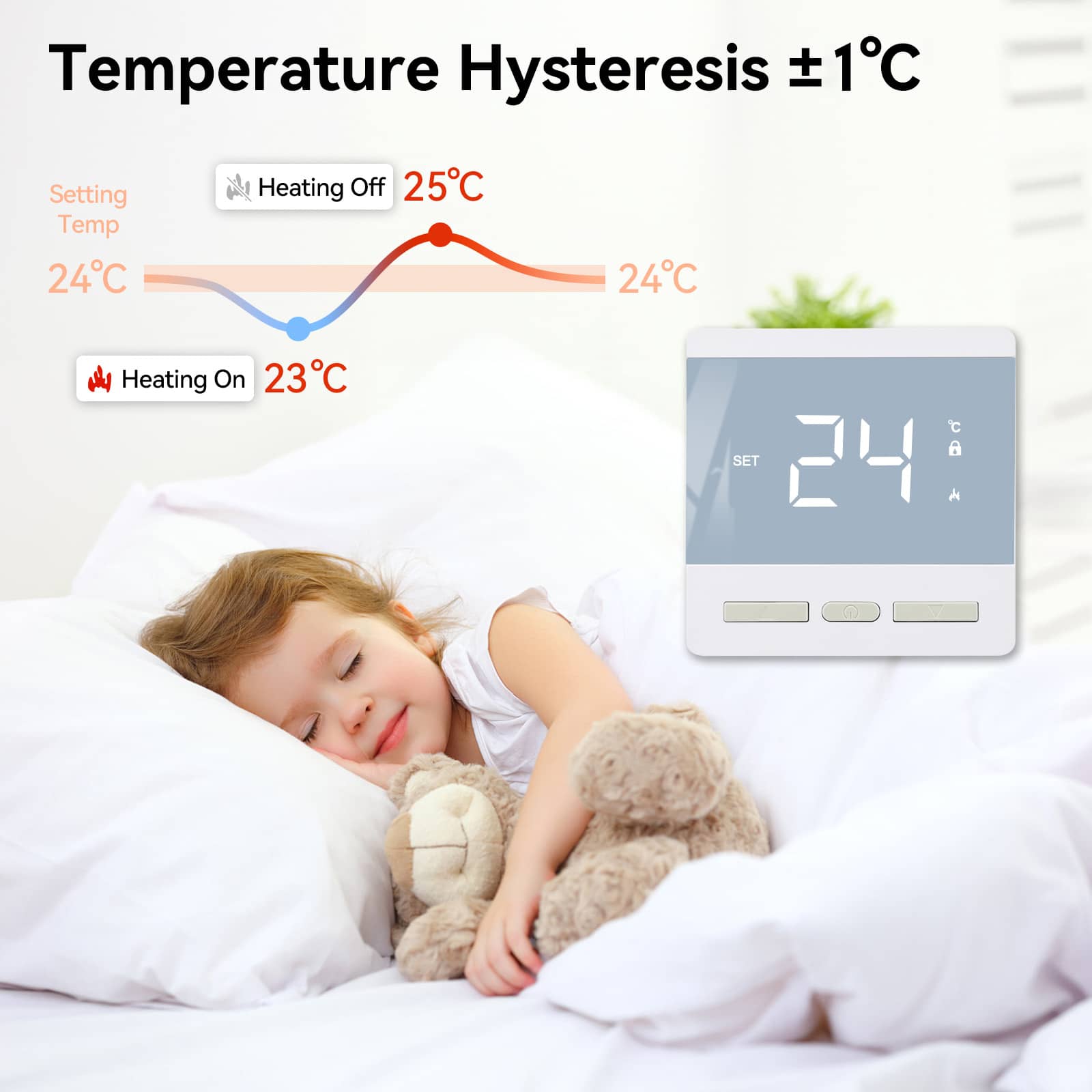

4.Switching differential：

Adjustable range from 1° C to 9 ° C.

5.Overheating protection：

Adjustable range from 15° C to 85 ° C.

6.Load long-time working protection-- trigger time：

Adjustable range from 1 hour to 24 hours. If set 0, will close this function, and the next setting “7” will show “- -".

7.Load long-time working protection-- protect time：

Adjustable range from 10 minutes to 90 minutes.

8.Test relay output：

ON: heat on

OF: heat off

9.Factory data reset：

EO flash: no reset

E1: reset
