Radiator Thermo Valve

Home Radiator Thermo Valve

3A Water Floor Heating System Smart WiFi Thermostat Central Heating Wiring Centres Hub Controller Actuators for Gas Boiler

3A Water Floor Heating System Smart WiFi Thermostat Central Heating Wiring Centres Hub Controller Actuators for Gas Boiler

HY525 wired master control panel is used to control water pump, Boiler, thermal actuator, motorised valve etc. HY525- Hub Controllers is used in water underfloor heating system. As central control unit, it can also control boiler and circulating pump. According to user's set temperature, hub controller can control to open or close boiler, circulating pump and electric actuators, to achieve the purpose of comfort and energy consumption saving.



  • Model :

    HY525
  • Working voltage :

    170-240VAC, 50/60Hz
  • Rated power :

    <10W
  • Color :

    White
  • Order(MOQ) :

    1
  • Product Details

Specifications:

Power: 170-240VAC50/60Hz

Relay output max current :3A

Storage temp :-20℃ ~ 70℃

Color:White

Ambient temp:-20℃ ~ 60℃

Size:240*110*42 mm



Advantages:

1. Easy to connect with power:

user only needs to reserve main supply in the place of manifold before installation, and directly connect one three-wires cable to thermostats. So user do not need professional wiring workers;

2. Easy to connect wires:

User only needs to connect wires according to wire colors;

3. Easy maintenance after installation:

All wires are very clear and neat;

4. To protect boiler or pump:

Hub controller has time delay function, it opens boiler and pump only when water valve is totally opened, and closes boiler when temperature reaches requirements. Time delay to open boiler and pump when heating can realize the purpose of energy-saving;

5. To extend boiler and pump life:

Hub controller only start boiler and pump in appropriate temperature, in this way, it will reduce boiler and pump running time, to extend their working life.



Photos:



3A Water Floor Heating System Smart WiFi Thermostat Central3A Water Floor Heating System Smart WiFi Thermostat Central3A Water Floor Heating System Smart WiFi Thermostat Central
Notice:

1. Due to product upgrades, the HY525 hub controller is only used to connect Normally Closed(NC) electric thermal actuators!

2. This is wired hub controller, the hub and the thermostat and the actuator are all wired. WiFi means that the thermostat can be controlled by the mobile phone through the APP.

Feature:

1. Every Hub controller max control 8pcs slave controller

2. Heating System included thermal actuator, boiler, water pump and mix valve

3. Every output have a corresponding indicator

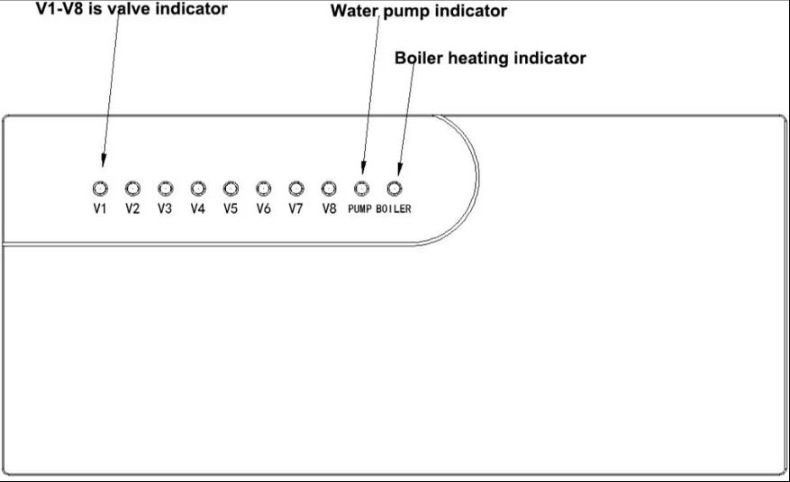

1. Output indicate:

(1) LED is constant light in the box mean have power output indicate

(2) LED is flashing light in the box mean a status indicate(If fault, then not indicate)

(3) red indicator light indicates 1-8# compartment electric valve opening indication

(4) LED 9, 10 red indicator light indicates boiler and water pump or system total valve opening indication.



3A Water Floor Heating System Smart WiFi Thermostat Central


 Installation Instructions:

3A Water Floor Heating System Smart WiFi Thermostat Central



Before Using:



If you need to debug or check whether the master controller is working normally, you can press and hold the debug button before powering on and then power on. At this time, the time delay is invalid, you can quickly check the functions required for debugging (such as the debugging function after 20 minutes of no operation). Invalid).

The working time required for the delay time can be adjusted by the dial switch, and can be adjusted according to the product indication position scheme.



Notes:



1,Please cut off power before installation, cleaning or replace

2,Please read manual carefully before installation and operation

3,Suggest let the professional worker install





3A Water Floor Heating System Smart WiFi Thermostat Central
